Features and Benefits

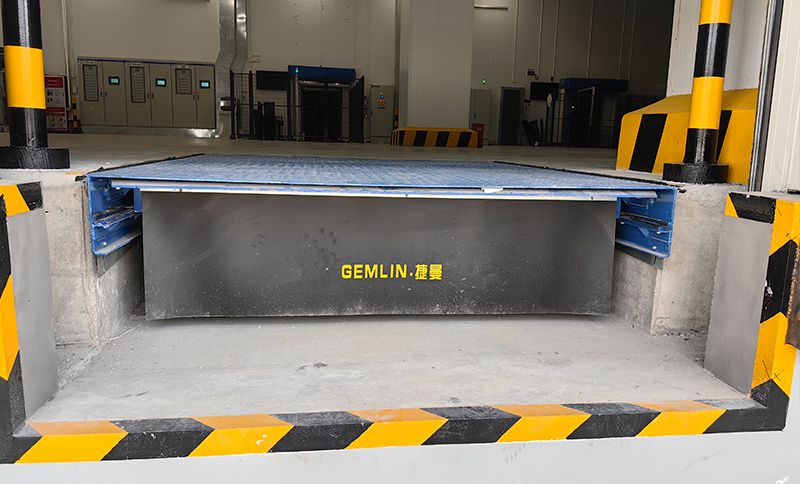

● The overlapping plate of the German unloading platform is made of a whole piece of ultra-thick 16mm patterned steel plate, with a specially designed bending angle to prevent the "trailer chassis" of the material handling equipment on the loading and unloading trailer compartment. Preset overlap marks facilitate safe operation by workers.
● The underside of the telescopic lap plate supports reinforced steel. The lap plate can be equipped with three optional lap plates to meet the needs of vehicles with different carriage widths.

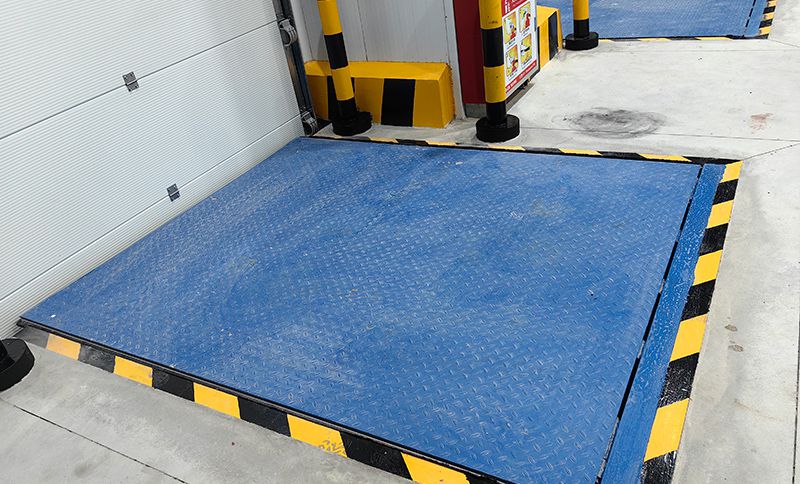

● Main platform: a whole seamless panel, the panel is made of 8mm thick embossed anti-slip steel plate, and the lower support structure is L-shaped anti-torsion steel to prevent the main board from stretching and deforming.
● Standard configuration of anti-fall protection system for trucks accidentally leaving, effectively preventing forklift platform falling accidents.
● The main oil cylinder is equipped with double oil cylinders.
● Visible hydraulic oil tank facilitates routine care and maintenance.
● Environmentally friendly - uses degradable anti-wear hydraulic oil.
● Control system The integrated control system completely integrates the loading and unloading platform, platform door and inflatable door seal into one control unit, which is intuitive, clear and easy to operate. Electrical control box 24V low voltage control, IP65 rating
● Sealing brushes (rubber strips), windshield curtains, and pit seals on both sides of the platform are optional.
