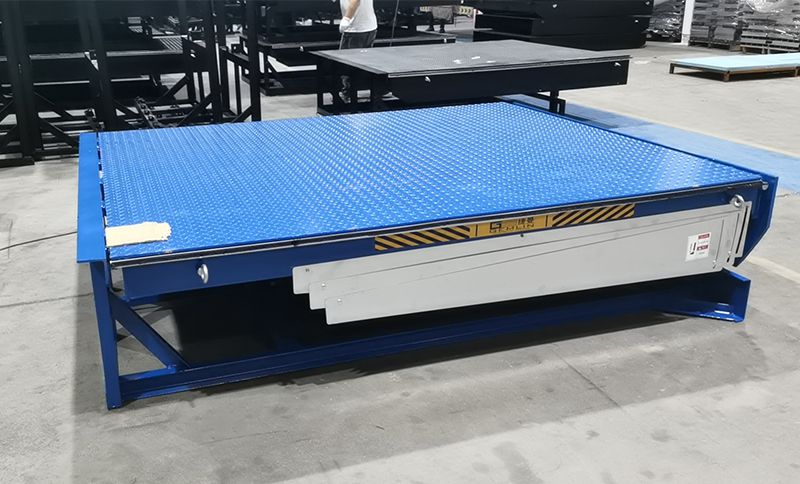

The overlapping plate of the German unloading platform is made of a whole piece of ultra-thick 16mm patterned steel plate, with a specially designed bending angle to prevent the "trailer chassis" of the material handling equipment on the loading and unloading trailer compartment. Three overlapping panels can be optionally used to meet the needs of vehicles with different carriage widths.
Features and Benefits
● The overlapping plate of the German unloading platform is made of a whole piece of ultra-thick 16mm patterned steel plate, with a specially designed bending angle to prevent the "trailer chassis" of the material handling equipment on the loading and unloading trailer compartment. Three overlapping panels can be optionally used to meet the needs of vehicles with different carriage widths.
● Open hinges prevent debris and dirt from accumulating on the hinges. This low-maintenance solution ensures trouble-free operation.
● The thickness of the hinge is 12mm; the surface of the shaft connecting the hinge is electroplated.
● Main platform: The panel is made of 8mm thick embossed anti-slip steel plate. The lower support structure is C-shaped anti-torsion steel. Anti-tensile ribs are set at both ends to prevent the main board from stretching and deforming.
● Integral galvanized anti-pinch baffle.
● Standard configuration of anti-fall protection system for trucks accidentally leaving, effectively preventing forklift platform falling accidents.
● The main cylinder can be configured with single or double cylinders according to customer requirements.
● Visible hydraulic oil tank facilitates routine care and maintenance.
● Environmentally friendly - uses degradable anti-wear hydraulic oil.
● Control system electric control box 24V low voltage control, IP65 rating. Standard setting of external interlocking safety interface.
● Sealing brushes (rubber strips), windshield curtains, and thermal insulation platforms on both sides of the platform are optional.
