| Size range | W45000，H45000 |
| panel thickness | 800-2500mm(Recalculate according to special environmental requirements) |
| Track material | Aluminium alloy |
| Window | Optional |
| Wind pressure resistance performance | 0.7-1.6 kPa(We can provide high wind resistant products according to customer needs) |
| Waterproof performance | Class 3 |
| Airtightness performance | Class 2 |
| Opening speed | 0.2-0.3m/s |
| Size range | -35℃ ~70℃ |
Sealing performance: The flexible door sealing design is unique and exquisite, and the entire door can achieve good sealing on the door curtain, head, bottom, and both sides.

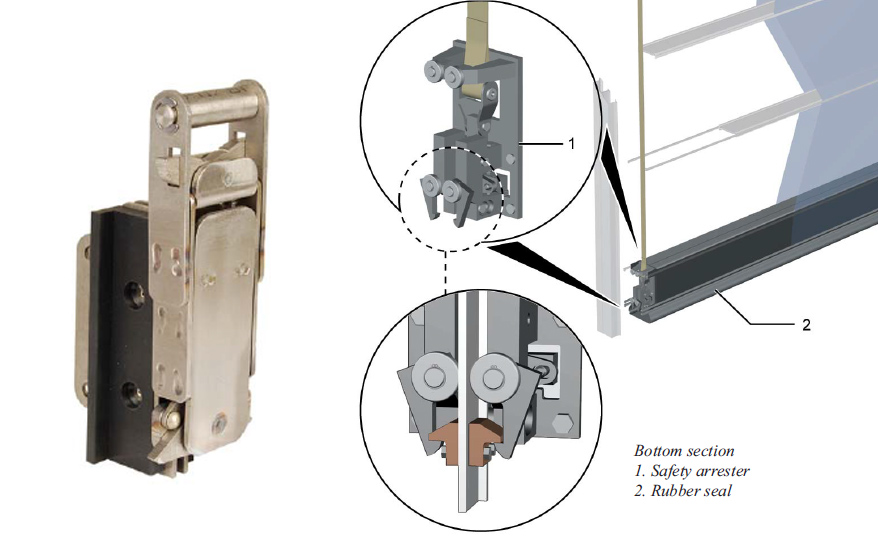

Safety performance: Each door is equipped with safety clamp technology, which can firmly clamp the door onto the aluminum guide rail without falling even in the event of a broken lifting system. This is why flexible doors choose aluminum tracks.
Low maintenance cost: The flexible lifting door has a simple structure and requires regular inspection of lifting cables, motors, brakes, and other components. Other components do not require regular maintenance.

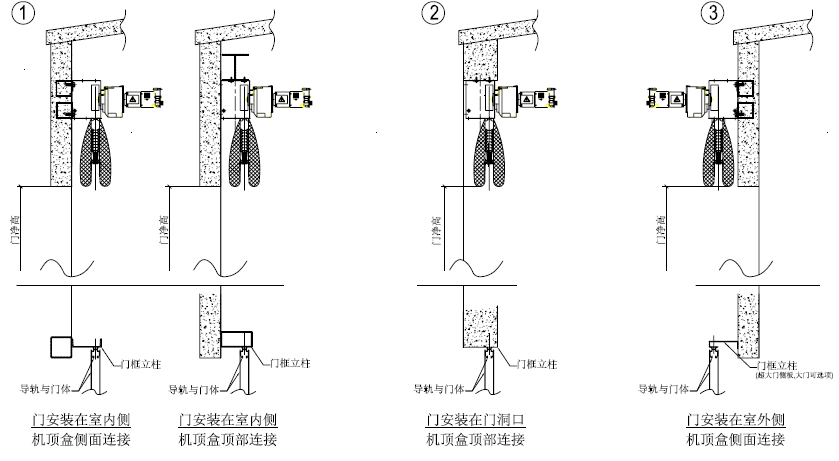

Installation diagram, specific dimensions are subject to the data provided by the sales engineer.
